Kami membekalkan pam vakum ram berputar untuk Becker
VT4.4/ VT4.8/ VT4.10 / VT4.16 / VT4.25 / VT4.40 / KVT3.60 / KVT3.80 / KVT3.100 / KVT3.140 / DVT3.80 / DVT3.140 / VTLF2. 250 / DVTLF2.250 / KDT3.80 / KDT3.140 / PICCH10 2200 / T4.40DSK / VT4.16 / GV8 / U5.40 / U5.71 / U5.101 / U5.166 / U5.201 / U5.301 .Jika anda memerlukan vakum becker pam , sila maklumkan kepada kami.
Pam vakum minyak Becker
Helaian data Becker Pumps
| Model TIDAK. | Kadar Kelajuan | Tekanan muktamad | Kuasa Motor | bising | Berat badan | |||
| m³/h | KPA | KWJ | dB(A) | kg | ||||
| 50hz | 60hz | 50HZ | 60HZ | 50HZ | ||||
| VT4.4 | 4.1 | 4.7 | 15 | 1ph | 0.18 | 0.21 | 59 | 7 |
| 3ph | 0.18 | 0.21 | ||||||
| VT4.8 | 8 | 9.1 | 15 | 1ph | 0.35 | 0.42 | 58 | 9.5 |
| 3ph | 0.37 | 0.44 | 58 | |||||
| VT4.10 | 10 | 12 | 15 | 1ph | 0.37 | 0.44 | 60 | 16 |
| 3ph | 0.37 | 0.45 | 60 | |||||
| VT4.16 | 16 | 19 | 15 | 1ph | 0.55 | 0.66 | 61 | 22.5 |
| 3ph | 0.55 | 0.70 | ||||||
| VT4.25 | 25 | 30 | 15 | 1ph | 0.8 | 1.1 | 62 | 26 |
| 3ph | 0.75 | 0.9 | ||||||
| VT4.40 | 40 | 48 | 15 | 1ph | 1.1 | 1.1 | 67 | 38.5 |
| 3ph | 1.25 | 1.5 | ||||||
| KVT3.60 | 55 | 66 | 10 | 2.2 | 2.6 | 71 | 84 | |
| KVT3.80 | 67 | 78.5 | 10 | 2.2 | 2.6 | 72 | 86 | |
| KVT3.100 | 98 | 112 | 10 | 3 | 3.6 | 75 | 108 | |
| KVT3.140 | 129 | 154 | 10 | 4 | 4.8 | 76 | 142.5 | |
| VTLF2.200 | 178 | 218 | 20 | 4 | 4.8 | 75 | 265 | |
| VTLF2.250 | 244 | 286 | 20 | 5.5 | 6.6 | 77 | 258 | |
| VTLF2.360 | 351 | 402 | 15 | 11 | 13.2 | 80.5 | 263 | |
| VTLF2.400 | 390 | 460 | 20 | 7.5 | 9 | 77 | 425 | |
| VTLF2.500 | 495 | 570 | 25 | 11 | 13.2 | 79 | 411 | |
| Model TIDAK. | Kadar Kelajuan | Tekanan muktamad | Kuasa Motor | bising | Berat badan | |||
| m³/h | KPA | KWJ | dB(A) | kg | ||||
| 50hz | 60hz | 50HZ | 60HZ | 50HZ | ||||
| T4.10 DV | 9.5 | 11.7 | ±50 | 1ph | 0.37 | 0.44 | 55 | 16 |
| 3ph | 0.37 | 0.45 | ||||||
| T4.16 DV | 15.5 | 18.1 | ±50 | 1ph | 0.55 | 0.66 | 61 | 24 |
| 3ph | 0.55 | 0.7 | ||||||
| T4.25 DV | 23.6 | 28.3 | ±50 | 1ph | 0.8 | 1.1 | 69 | 26 |
| 3ph | 0.75 | 0.9 | ||||||
| T4.40 DV | 35.9 | 42.5 | ±50 | 1.25 | 1.5 | 66 | 38.5 | |
| T4.25 DSK | 23.4 | 28.5 | ±60 | 1ph | 1.1 | 69 | 35 | |
| 3ph | 1.1 | 1.3 | ||||||
| T4.40 DSK | 34.5 | 42.1 | ±60 | 1.85 | 2.2 | 68 | 46 | |
| DVT3.60 | 55.2 | 65 | ±50 | 2.2 | 2.6 | 75 | 84 | |
| 54.6 | 63.8 | ±60 | 3 | 3.6 | ||||
| DVT3.80 | 63.9 | 76.5 | ±50 | 4 | 4.8 | 76 | 113.5 | |
| 63 | 76 | ±60 | 4 | 4.8 | ||||
| DVT3.100 | 95.6 | 113.7 | ±50 | 5.5 | 6.6 | 77 | 134.5 | |
| 96.1 | 112.7 | ±60 | 5.5 | 6.6 | ||||
| DVT3.140 | 126 | 149 | ±50 | 7.5 | 9 | 78 | 146 | |
| 126 | 148 | ±60 | 7.5 | 9 | ||||
| DVTLF2.250K | 242 | 287 | ±50 | 7.2 | 9 | 79 | 277 | |
| DVTLF2.400 | 380 | 455 | ±50 | 11 | 12.5 | 79 | 422 | |
| DVTLF2.500 | 500 | 575 | ±50 | 15 | 17.3 | 80 | 420 | |
| Model TIDAK. | Kadar Kelajuan | Tekanan muktamad | Kuasa Motor | bising | Berat badan | |||
| m³/h | KPA | KWJ | dB(A) | kg | ||||
| 50hz | 60hz | 50HZ | 60HZ | 50HZ | ||||
| U5.40 XLK | 40 | 48 | 0.1-0.3 | 1PH | 1.1 | 1.35 | 67 | 28.5 |
| 3PH | 1.1 | 1.35 | ||||||
| U5.45 | 45 | 54 | 0.05-30 | 1.5 | 1.5-1.8 | 62 | 31 | |
| U5.65XLK | 65 | 78 | 0.05-30 | 1.5 | 1.8 | 72 | 36 | |
| U5.71 | 70 | 84 | 0.01-10 | 1.5 | 1.8 | 64 | 60.5 | |
| U5.101 | 100 | 120 | 0.01-40 | 2.2 | 2.6 | 65 | 77 | |
| U5.166 | 165 | 198 | 0.01-10 | 3.0 | 3.6 | 70 | 107 | |
| 0.01-40 | 4.0 | 4.8 | 104 | |||||
| U5.201 | 200 | 240 | 0.01-10 | 4.0 | 4.8 | 72 | 102 | |
| 0.01-40 | 5.5 | 6.6 | 121 | |||||
| U5.166 | 165 | 198 | 0.01-10 | 5.5 | 6.6 | 73 | 161.5 | |
| 0.01-40 | 7.5 | 9.0 | ||||||
Kami juga membekalkan bahagian pam vakum Becker: ram, penapis, rotor, gandingan, cakera gandingan, penutup penutup, galas, di bawah foto untuk rujukan anda
penapis becker
cakera gandingan
gandingan
Tudung penutup
injap
Kit gasket untuk Becker
kipas pam becker
pemutar pam untuk becker

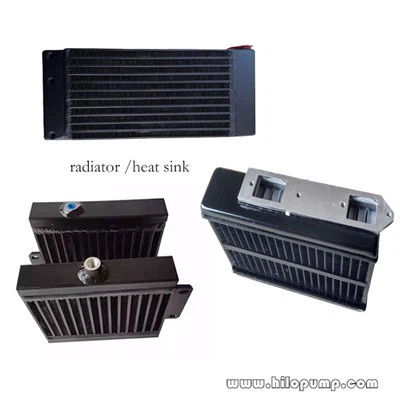

sink haba
injap pengawal selia
